“Once you’ve used these, every other armrest feels like a concrete bench”

Engineered for the demands of elite time-trial, pursuit and track kilo athletes, the Velobike Innovation Aerobar Arm Rests provide exceptional adjustability, comfort, and compatibility without compromising performance.

Designed to integrate seamlessly with the Velobike Adjustable Riser System, these arm rests also feature a universal mounting platform to suit a wide range of aerobar and time trial setups. These arm rests help fine-tune your position through:

  • Fore/aft and lateral adjustment via 16x slotted mounting holes
  • Angled in/out positioning to suit rider-specific bike fits
  • Ergonomic shaping for reduced system frontal area

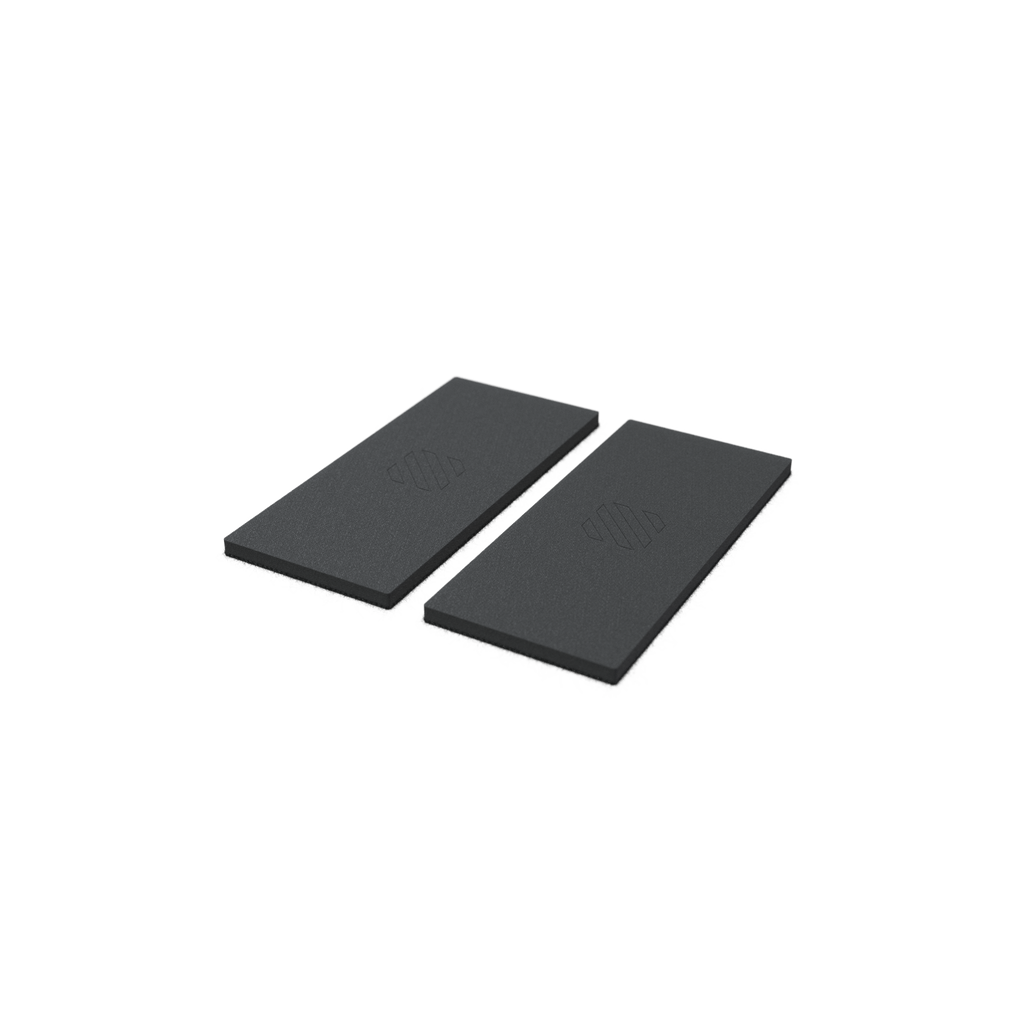

  • Foam padding supplied (but not fitted) for optional support and comfort
Technical Specifications

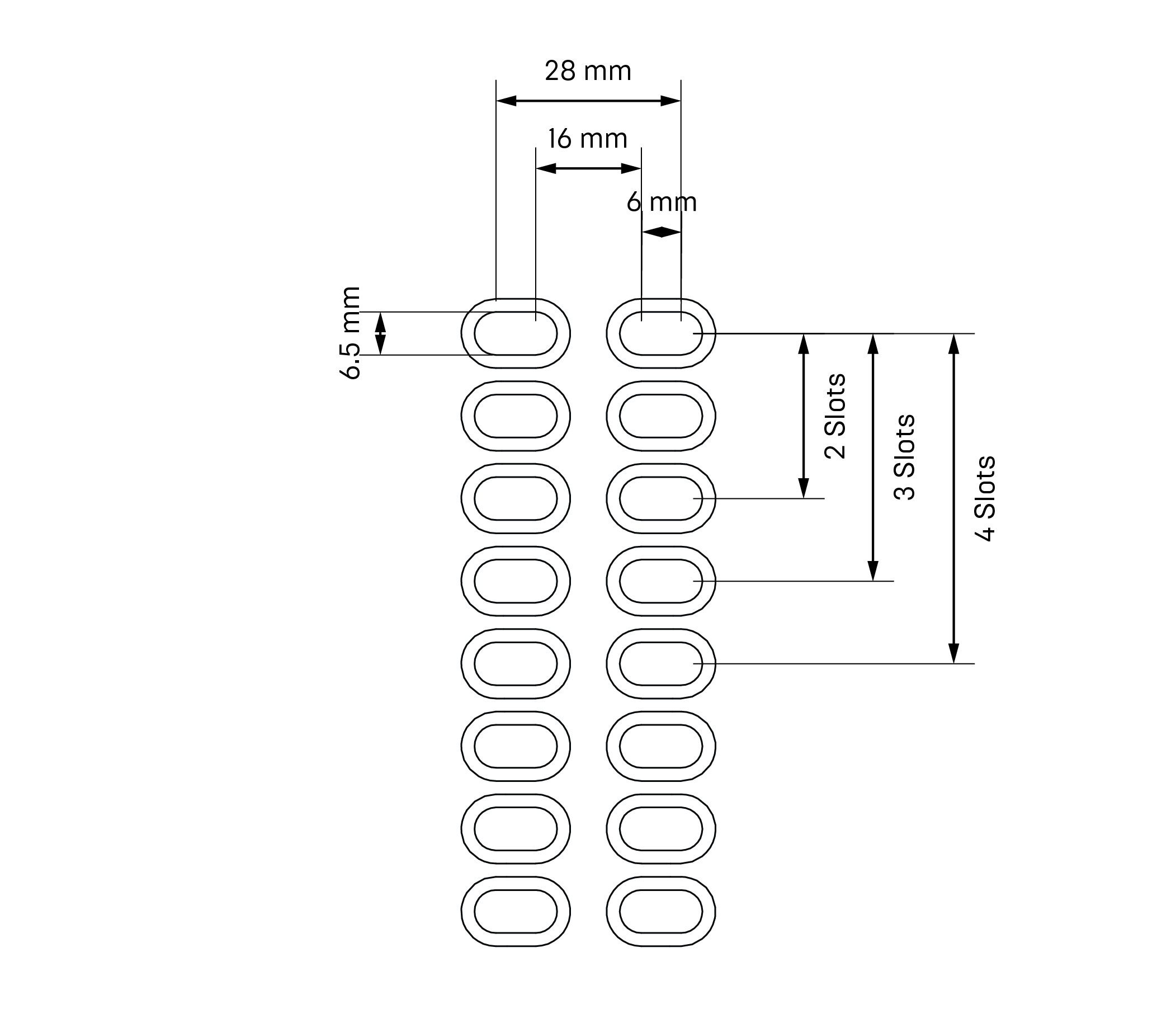

Hole Spacing

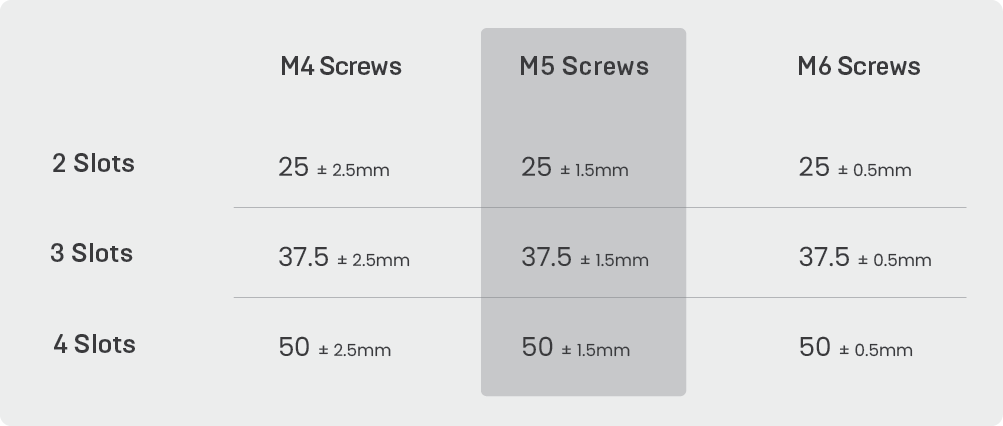

Each mounting slot is designed to accommodate a range of screw spacings. Here is a diagram explaining this. Then this table will help you work out compatibility.

For example, if your setup uses M5 screws spaced at 36 mm, our 3-slot pattern (centred at 37.5 mm ±1.5 mm) will provide suitable clearance. This allows for screw spacings between 36 mm and 39 mm to be compatible.

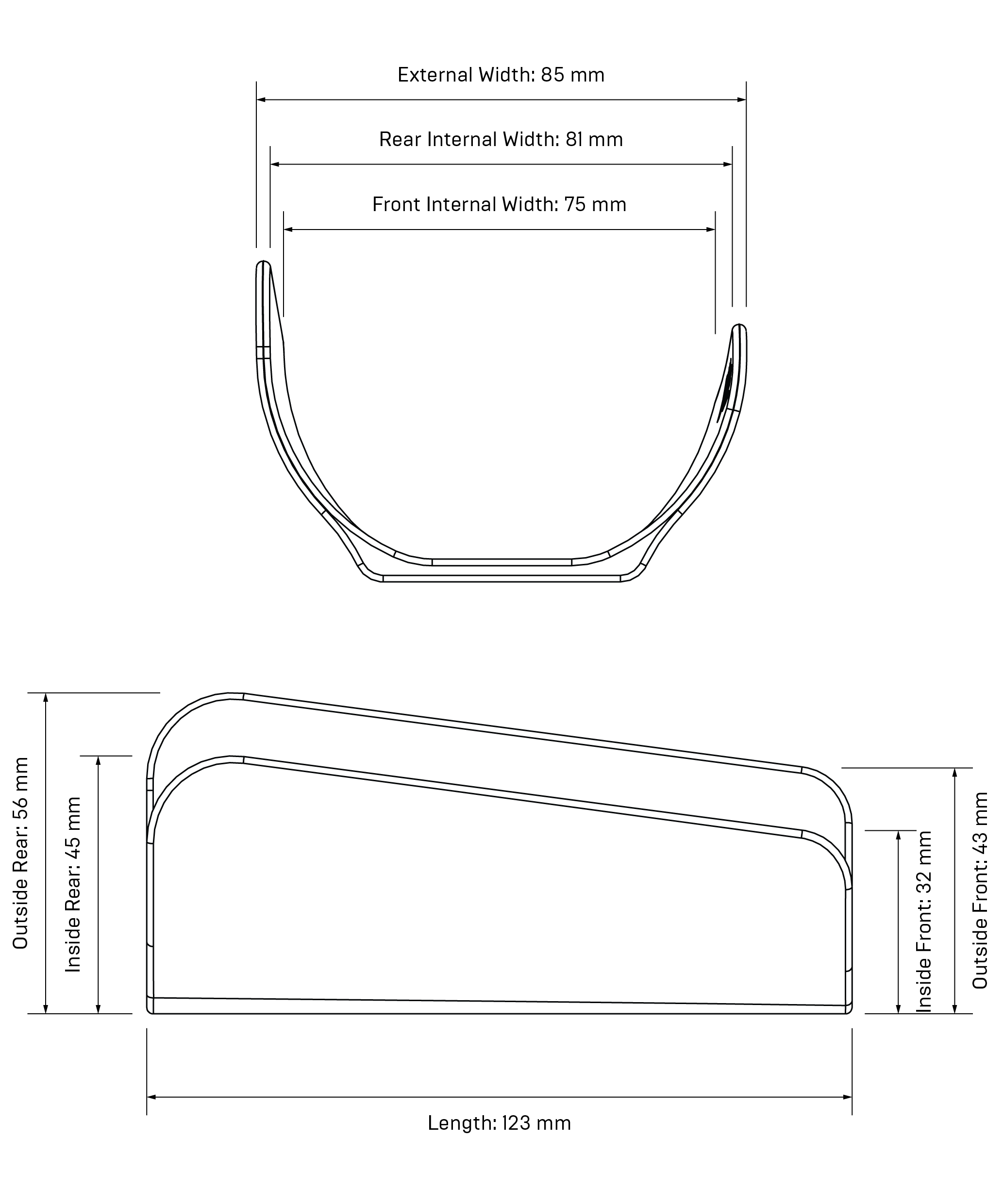

Product Geometry

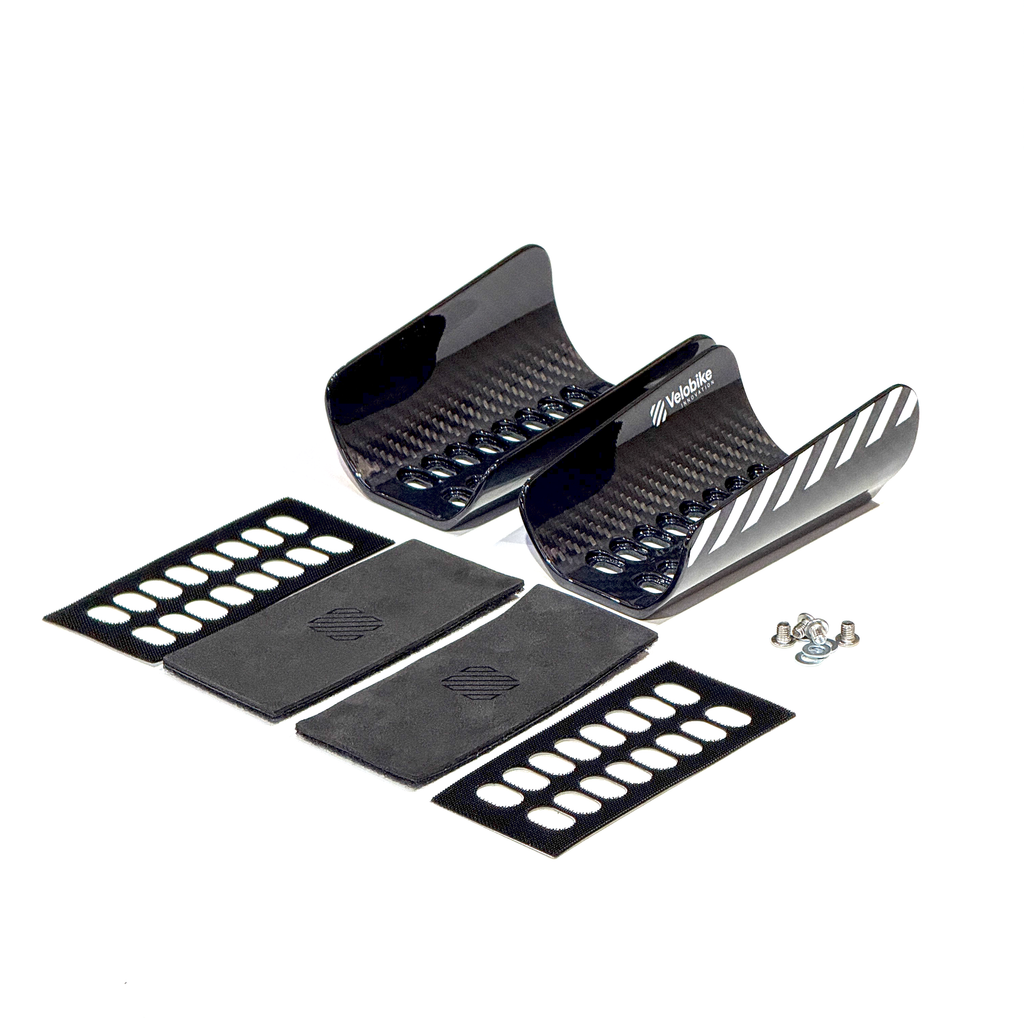

What's In The Box
  • 1x Pair of Arm Rests (Left & Right)
  • 2x Velcro Pads
  • 4x M5 Stainless Steel Mounting Screws
Installation Tips

For optimal security, we recommend using Loctite 243 on all fastenings.
